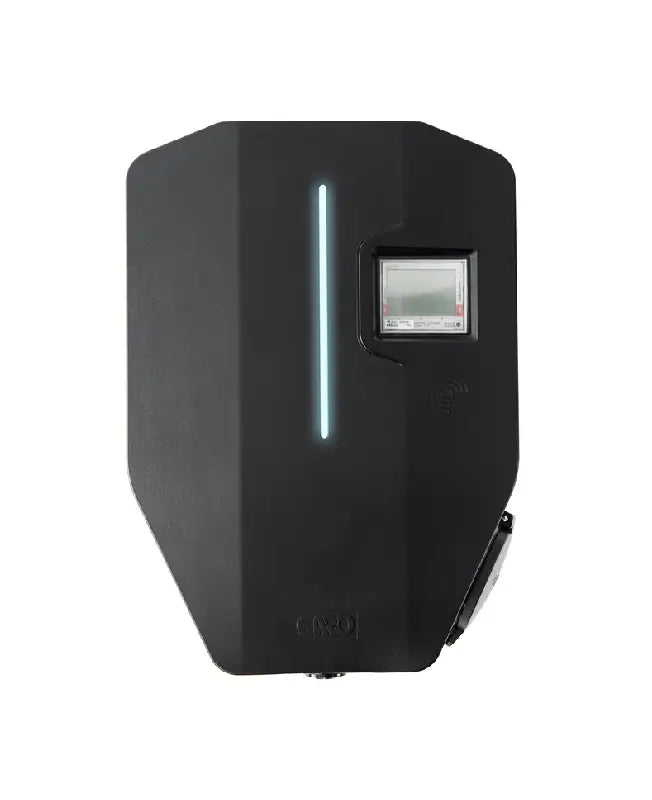

GARO Entity Pro 22 SVGI O 22kW Type 2 Charging Station

Features:

• Power and connections:

  • Maximum power: 22 kW
  • Voltage: 400V
  • Rated current: 3x32A
  • Charging socket: Type 2
  • Input terminals: 16mm² Al/Cu, daisy-chainable

• Safety and measurement:

  • Residual current protection: A-type
  • DC monitoring
  • Internal kWh measurement

• Contacts:

  • OCPP compatible
  • 4G SIM card slot
  • LAN and WiFi mesh

• Structure and durability:

  • Protection class: IP54
  • Impact resistance class: IK10
  • Material: Plastic
  • Dimensions: Width 240 mm, Height 340 mm, Depth 150 mm

Usage and Installation:

Entity Pro 22 SVGI O is a complete charging station, including a mounting base, charging station and cover. It is ideal for parking lots in single-family homes, condominiums and offices. The charging station can be mounted on a wall, on a pole with a bracket or on a separate stand on the ground.

Smart Features:

The GARO Connect app allows you to:

• Load management in up to four levels
• Assigning access rights via RFID or app
• Centralized remote reading of consumption data
• Real-time charging data and power monitoring
• Automatic updates

Specifications:

• Number of charging points: 1
• Installation method: Wall mounting
• Separate feed center: No
• Number of type A residual current circuit breakers: 1
• Energy meter: Yes
• Charging cable length: 0 m
• Display: No
• Smart Home Compatibility: Apple HomeKit, Google Assistant, Amazon Alexa, IFTTT (Not supported)

The Entity Pro 22 SVGI O is a powerful and versatile charging solution that offers safety, smart features and durability, making it the ideal choice for modern electric vehicle charging.
