Beny

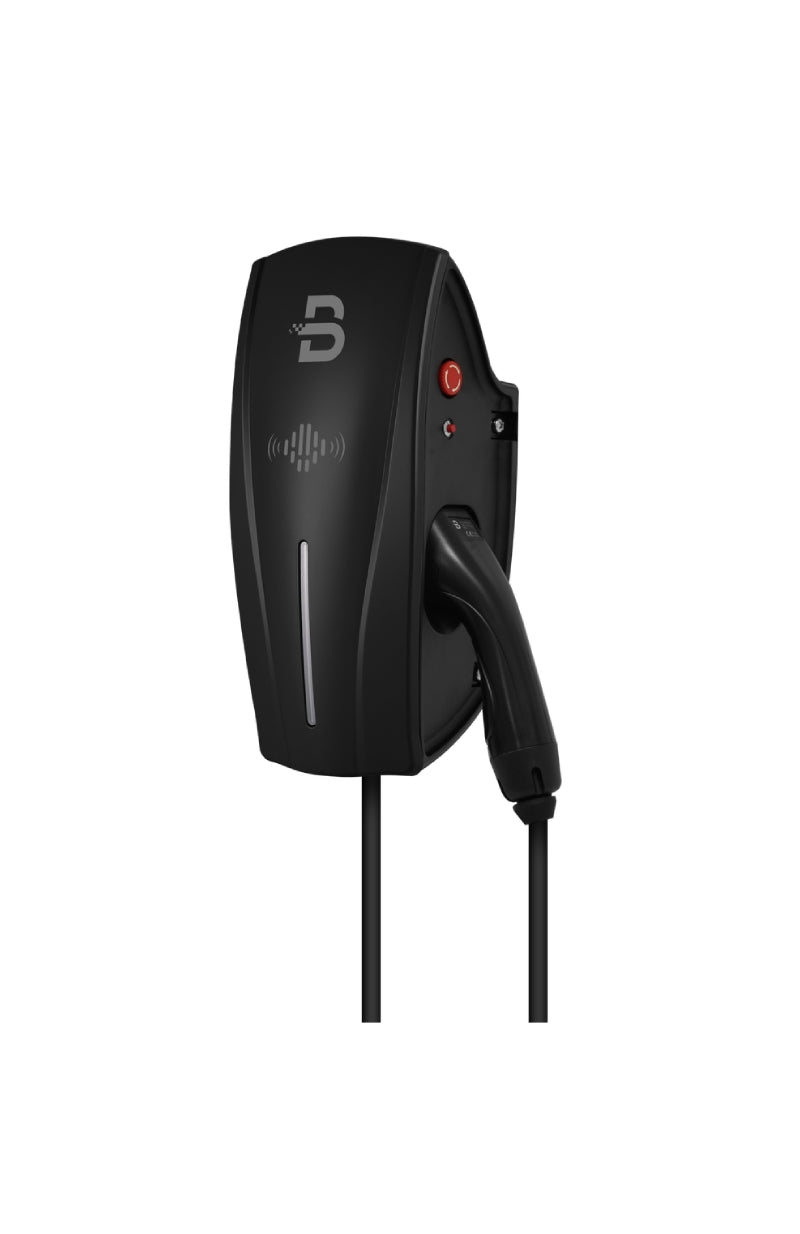

Beny BCP electric car charging station Type 2, 22kW, DLB, WIFI
This state-of-the-art 22kW Type 2 charging station offers a fast, safe and smart charging solution. Equipped with dynamic load management and WiFi connectivity, the BENY BCP allows for easy monitoring and control via the Z-Box mobile app. With an IP65 rating, the station is suitable for both indoor and outdoor use, providing flexibility for charging electric and hybrid vehicles.
- ✓Ilmainen kartoitus ja tarjous – ei sido hankintaan
- ✓Yksilöity asennussuunnitelma
- ✓2 vuoden asennustakuu
- ✓Virallinen jälleenmyyjä ja asentaja
Asennettuna alk. 52 €/kk OP Rahoituksella. Lue lisää →
Pyydä tarjous →Tuotekuvaus

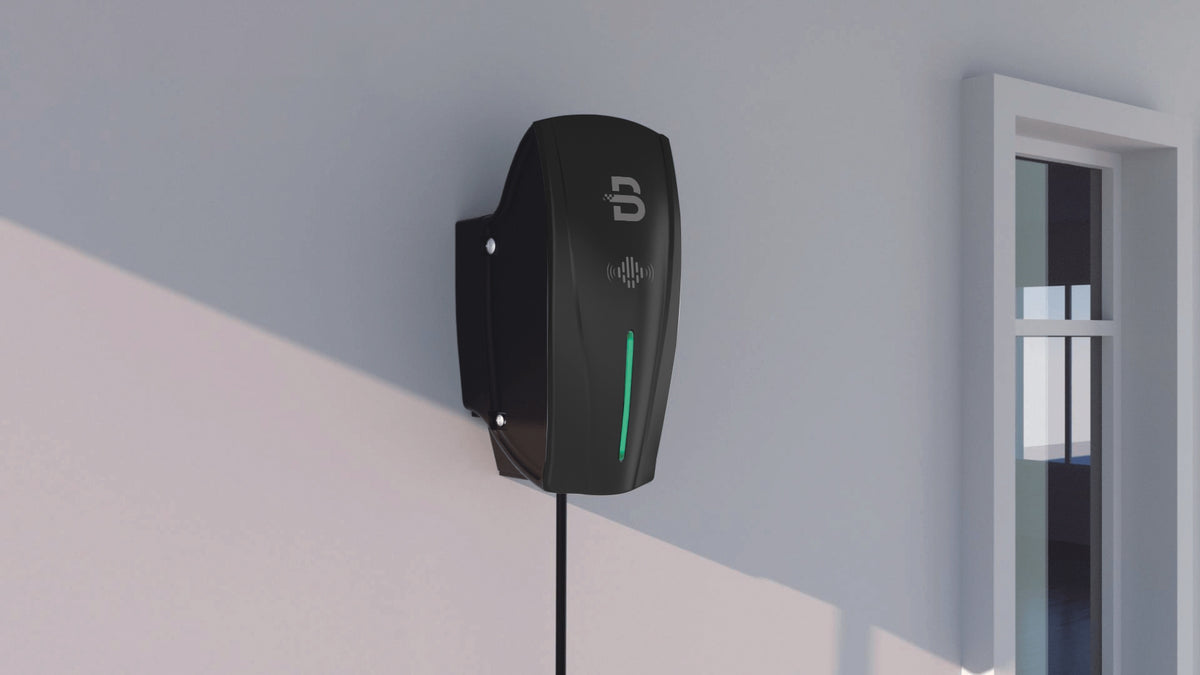

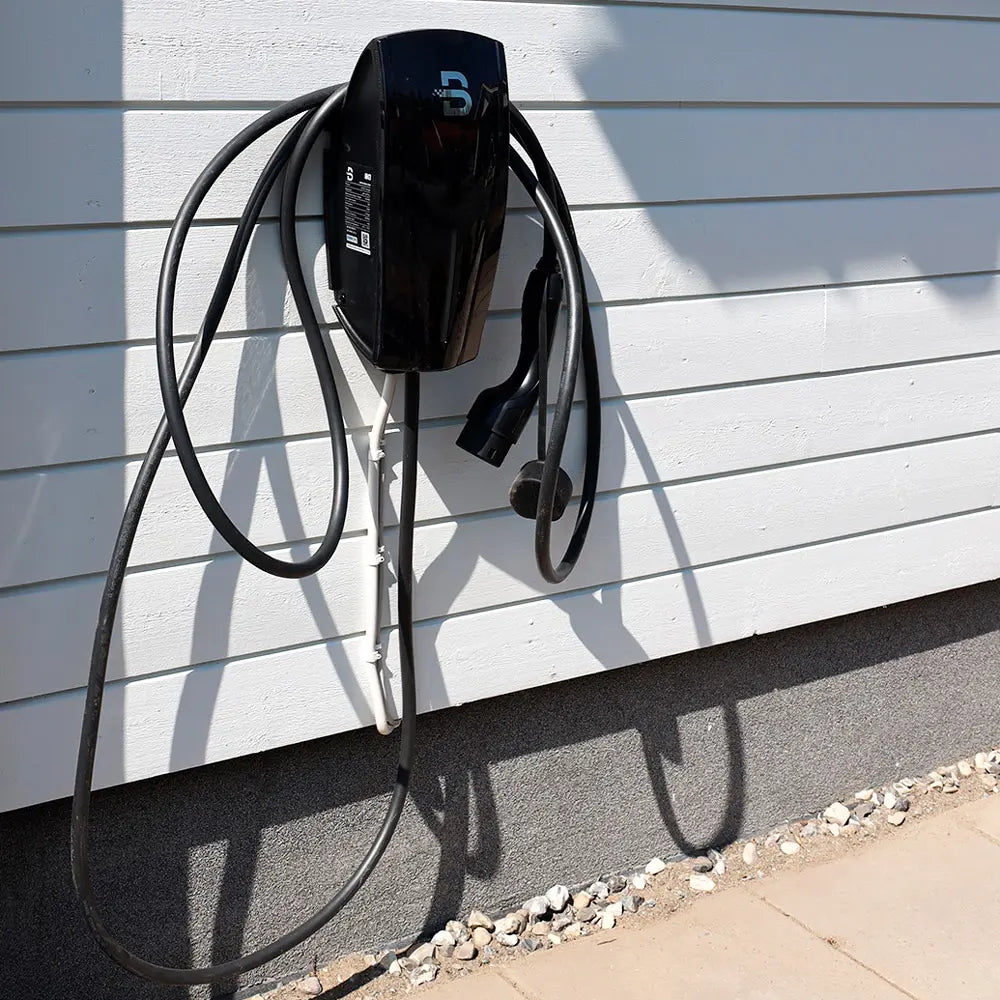

Charge your electric car at home with the BENY BCP charging station. This state-of-the-art 22kW Type 2 charging station offers a fast, safe and smart charging solution. Equipped with dynamic load management and WiFi connectivity, the BENY BCP allows for easy monitoring and control via the Z-Box mobile app. With an IP65 rating, the station is suitable for both indoor and outdoor use, offering flexibility for charging electric and hybrid vehicles. We install the charging station at your home so you can enjoy worry-free and environmentally friendly charging. Read more about the installation >>
- Suitable for home charging of both hybrid and electric cars.
- Dynamic load management and the ability to charge the car with local solar power come as standard.
- IP65 protection class design for indoor and outdoor use.
- The Type 2 (IEC 62196-2) charging connector is compatible with all electric cars.
- Connect and start charging automatically. RFID optional.
- The charging station's power is adjustable from 6A to 32A.

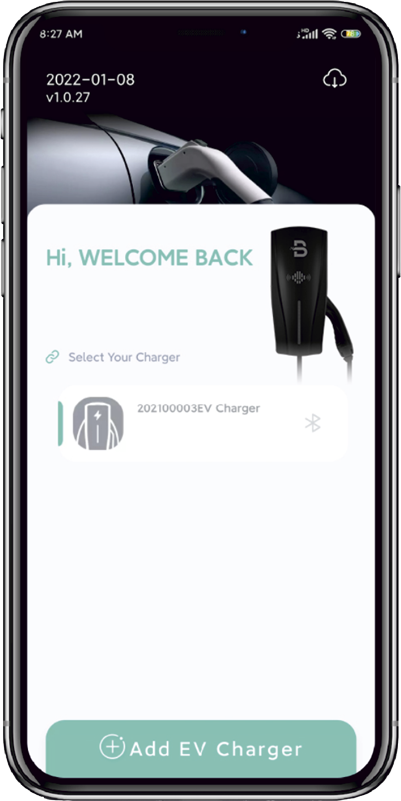

- You can monitor and control the operation of your BENY charger using the easy-to-use Z-Box mobile application.
Manufacturer :
BENY Electric manufactures electric vehicle charging equipment and solar energy products, bringing over three decades of expertise to the industry. The company produces hundreds of thousands of DC surge protectors and charging stations annually, and its operations are certified to multiple international standards.
BENY focuses on product development and the high quality of its products. The manufacturer's factories and its products comply with UL, SAA, CB, CE, TUV, ISO and RoHS standards.
Electrical information:
- Charging power: 4.1kW – 22kW
- Charging mode: Mode 3 (IEC 61851-1)
- Output power: 3-phase, 400V 6A -32A, 50-60Hz
- Connector options: Fixed cable with type 2 plug or type 2 plug
- Cable length: 6m
- Power supply: Rear or bottom
Security and certifications:
- Built-in residual current circuit breaker: built-in leakage sensor DC6mA, TYPE A must be installed separately
- Cable version: IP65, IK07
- Plug version: IP55, IK07
- Enclosure fire rating: V0
- Operating temperature: -25~+55°C
- Compliance: IEC61851-1, IEC61851-21-2, IEC61000-4
- Certificates: CE EMC EU/2014.CE Low Voltage EU/2014/35
Contacts:
- Charging start: Autostart as standard / RFID card as option
- Status display: LED lights
- WLAN: Wi-Fi / Bluetooth 4.2
Mechanical data:
- Housing: Polycarbonate
- Dimensions: W169 x H380 x D151 mm
- Installation: Wall or pole
WIFI:
- Frequency range: 2412 - 2484MHz
- WIFI protocol: IEEE 802.11 b/g/n
- Channels: 13
- TX power: <20dbm
- EIRP: 0.459
- TX bandwidth: 20MHz/40MHz
- Modulation type: OFDM & DSSS
- Pulse ratio: 10%
Bluetooth BLE:
- Sensitivity @ 30.8% PER: -93 dbm
- Common channel C/I: +10db
- RF power adjustment range: -12 ~ 9dbm
NFC:
- Modulation type: ASK
- Operating frequency: 13.56MHz
- Magnetic field strength: 21.31 dBuA/m @3m away
- Antenna type: Coil antenna
Attachments:
Download brochure >>
Operating and installation instructions >>
Read the reference >>
Mobile application user manual >>
DLB controller user manual >>
