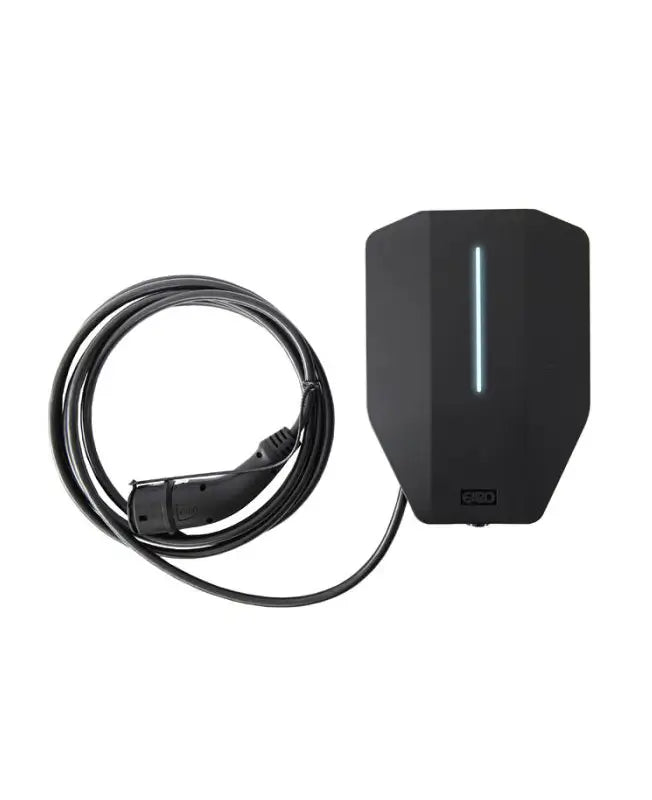

GARO Entity Pro 14 SIGI 5 14kW Type 2 Charging Station

Features:

• Power and connections:

  • Maximum power: 14 kW
  • Voltage: 400V
  • Rated current: 3-phase
  • Charging socket: Type 2
  • Charging cable: 5m

• Safety and measurement:

  • Residual current protection: A-type
  • Circuit breaker
  • Internal energy meter

• Connections and compatibility:

  • OCPP compatible
  • GARO Connect app (free)
  • No support for Apple HomeKit, Google Assistant, Amazon Alexa, or IFTTT



• Structure and durability:

  • Protection class: IP54
  • Impact resistance class: IK10
  • Material: Plastic
  • Dimensions: Length 150 mm, Width 240 mm, Height 340 mm
  • Product weight: 5.8 kg

Usage and Installation:

Entity Pro 14 SIGI 5 is a complete charging station, including a mounting base, charging station and cover. It is designed for parking lots in single-family homes, condominiums and offices. The charging station can be mounted on a wall or pole with a separate bracket.

Smart Features:

The GARO Connect app allows you to:

• Four levels of load management
• RFID for access control


  or by app
• Remote reading of consumption data
• Real-time monitoring of charging data and power
• Automatic software updates

Specifications:

• Number of charging points: 1
• Installation method: Wall mounting
• Separate feed center: No
• Number of type A residual current circuit breakers: 1
• Energy meter: Yes
• Display: No
• Brand: GARO
• Product series: GARO Entity Pro
• Warranty: 24 months

The Entity Pro 14 SIGI 5 is a powerful and versatile charging solution that offers safety, smart features and durability. It is the ideal choice for charging electric vehicles at home or at work.
