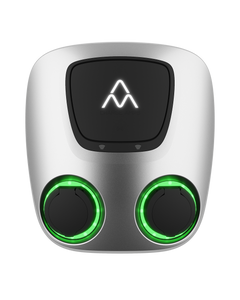

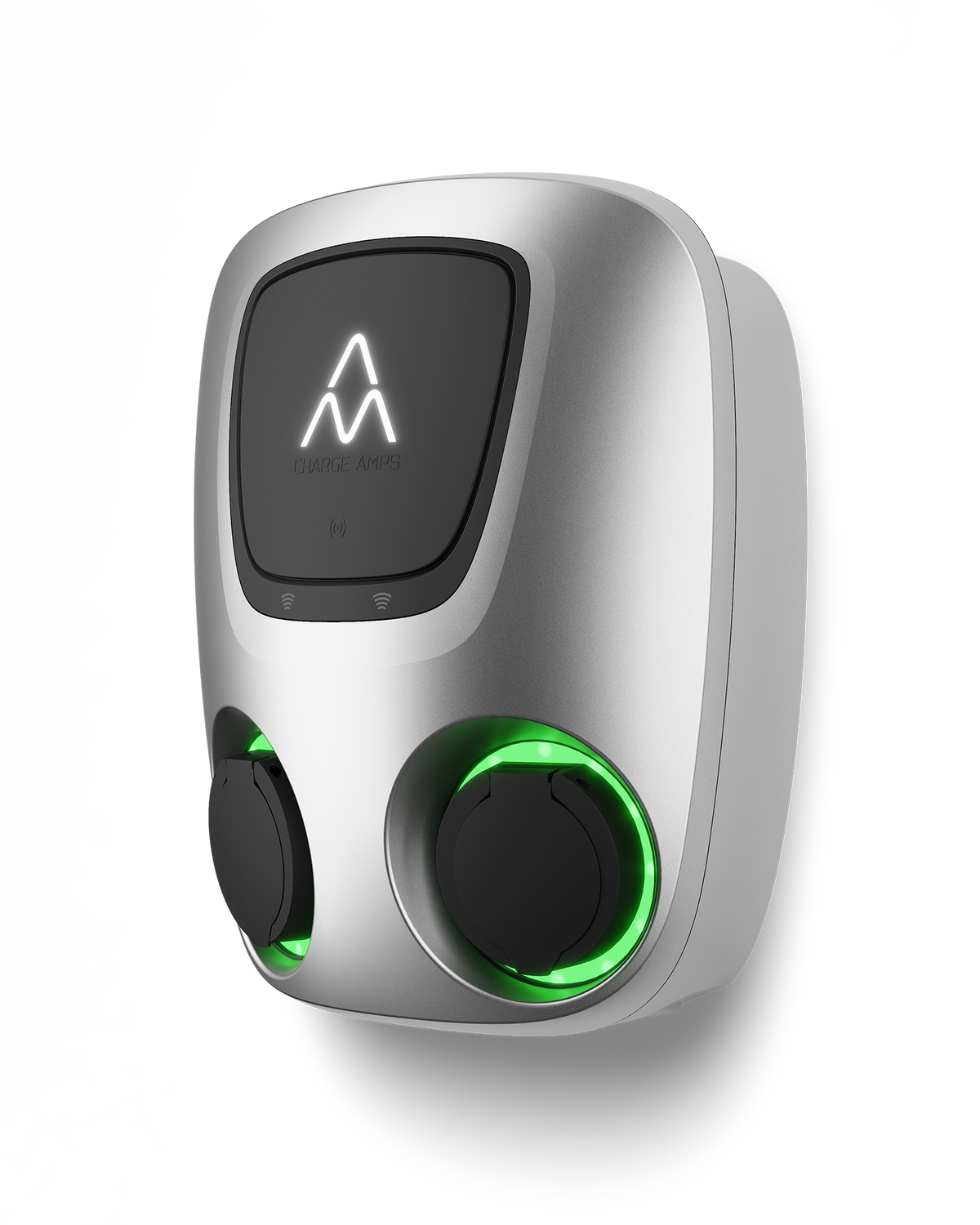

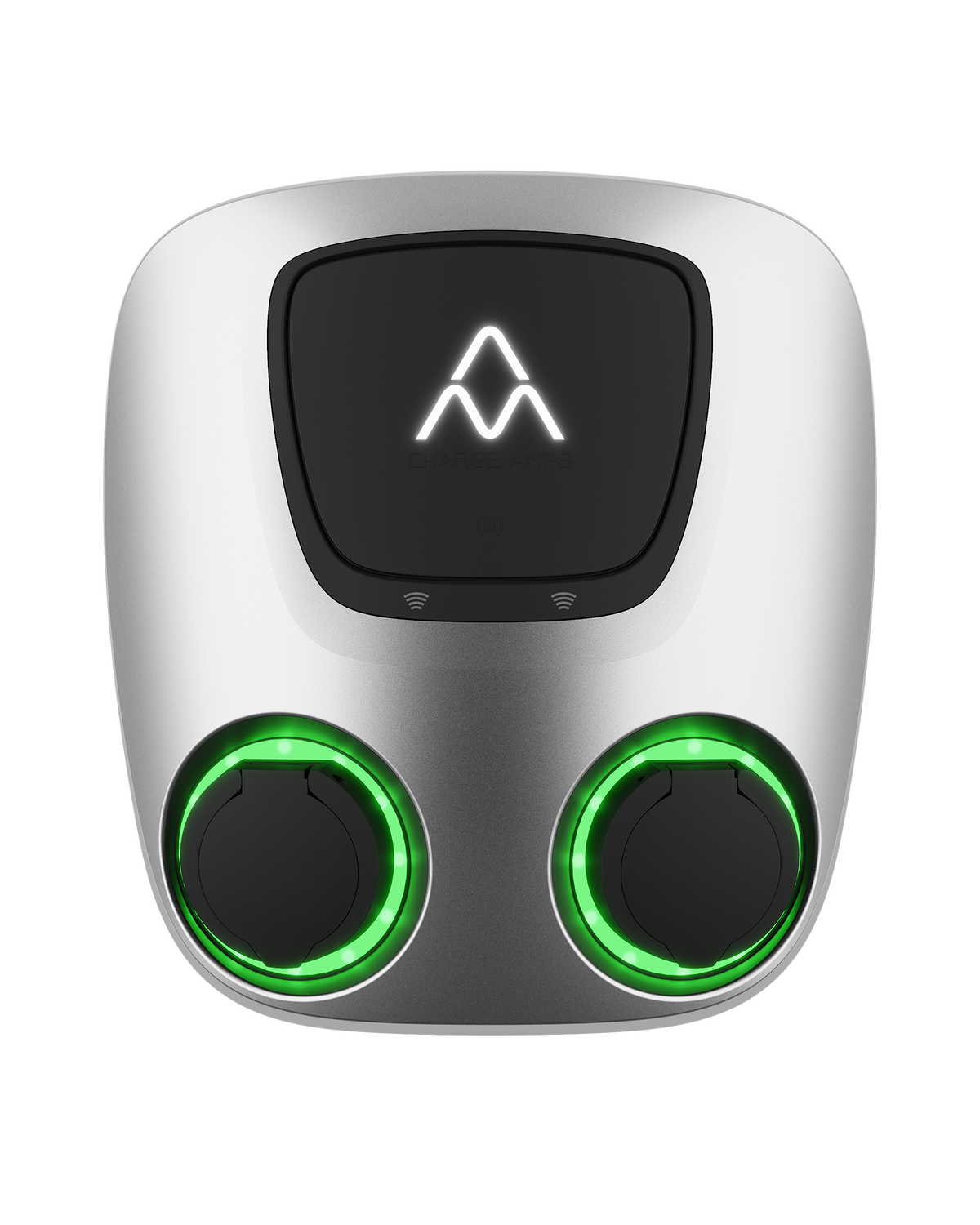

Charge Amps Aura 2×22 kW WiFi, LAN 4G two-car charging station
Charge Amps Aura is designed to charge two cars simultaneously with a power output of 22 kW. Charge Amps Aura is an ideal solution for both home use and corporate parking lots. The station is OCPP-compatible and supports future V2G (Vehicle-to-Grid) technology according to the ISO 15118 standard.
Description and features
Product information:
Charge Amps Aura is an electric car charging station designed to charge two cars simultaneously at 22 kW. The stylishly designed and durable charging station is made of recycled aluminum and offers full control over charging via the Charge Amps app.
Made from recycled aluminum, Charge Amps Aura is the work of industrial designer and chief designer of sports car manufacturer Koenigsegg, Joachim Nordwall.

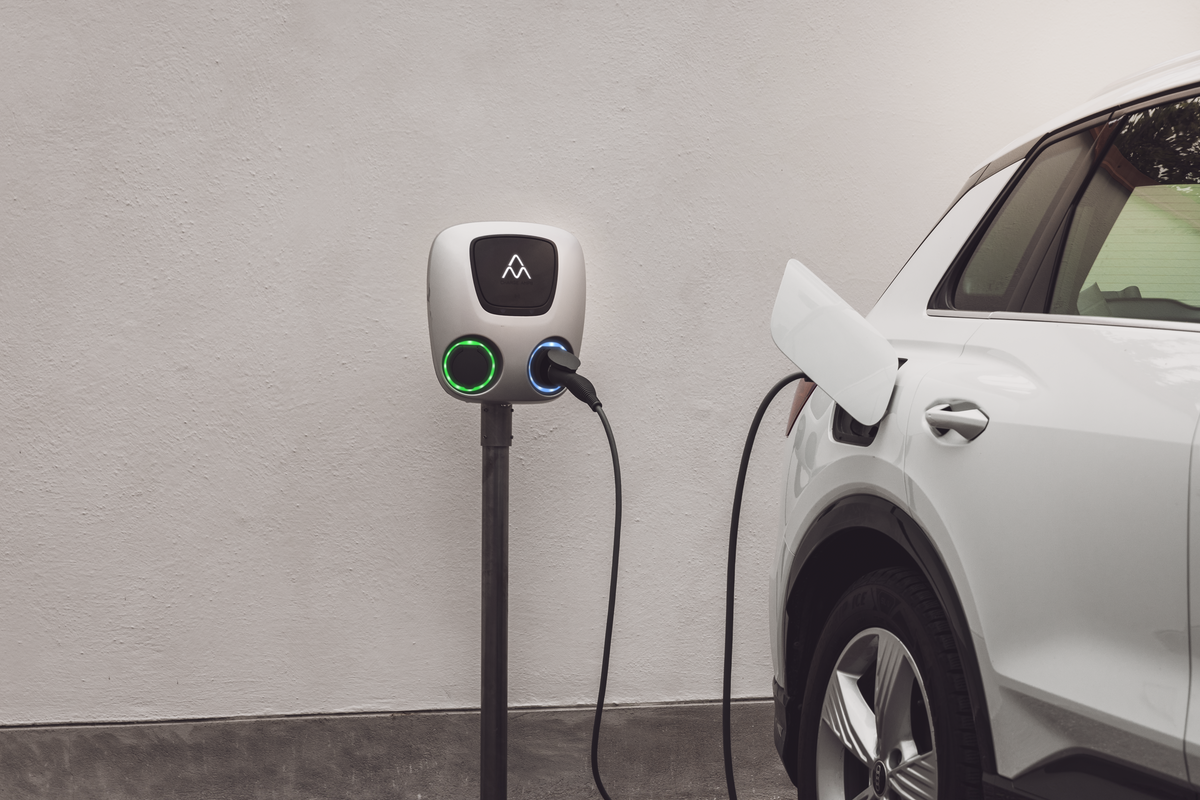

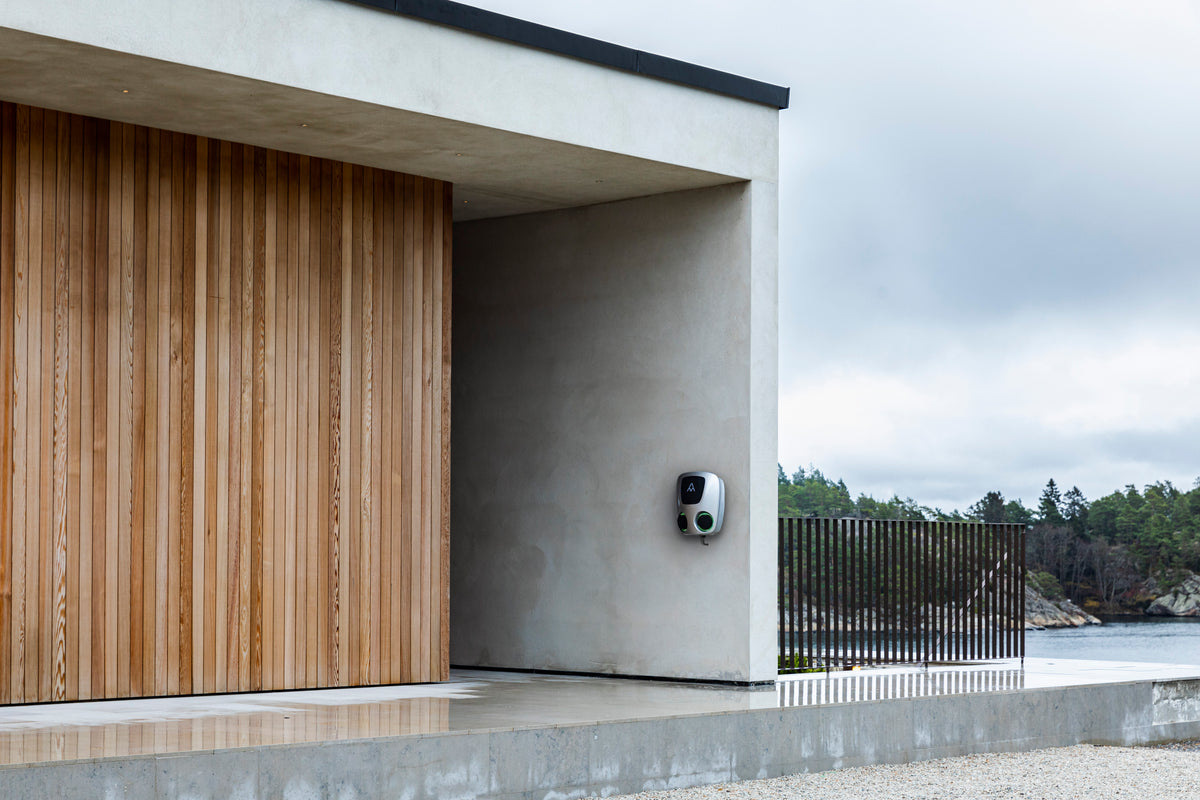

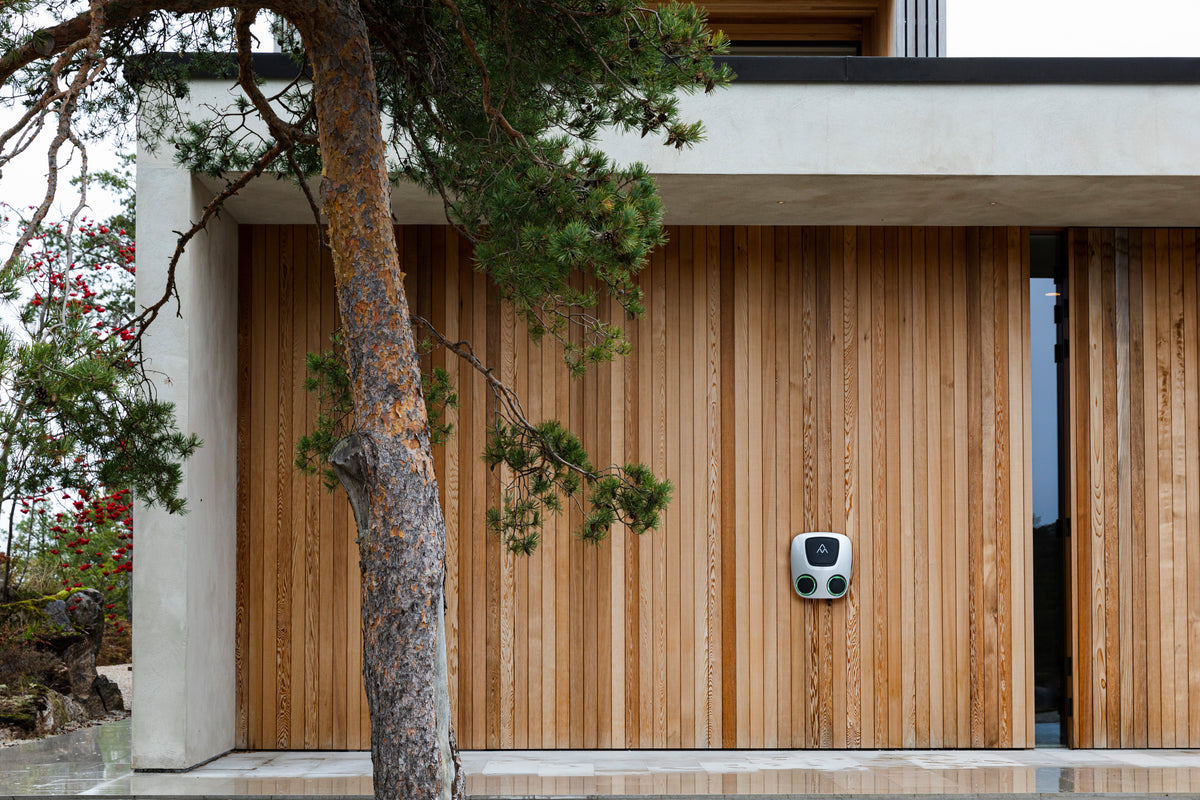

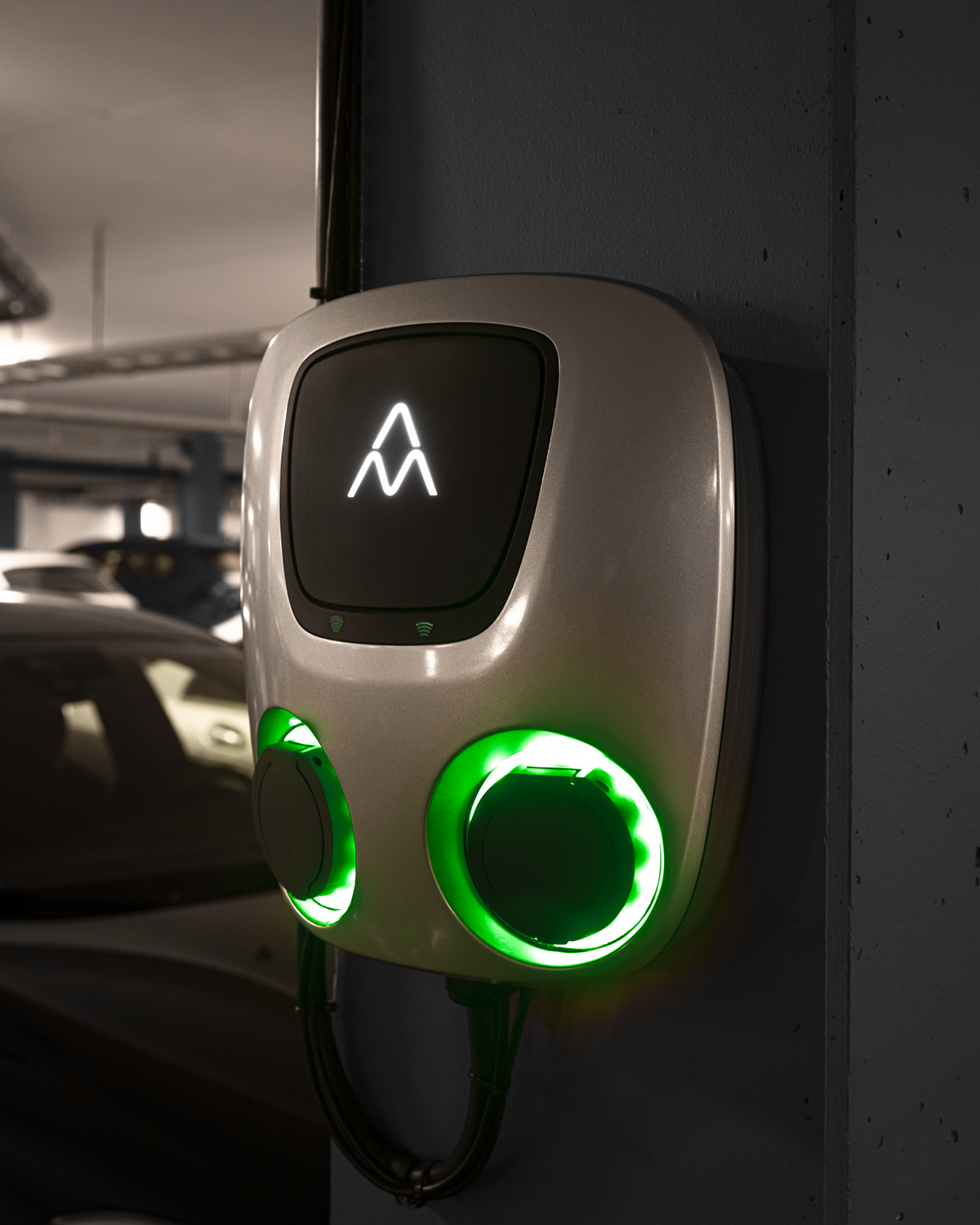

The Charge Amps Aura is an ideal solution for both home use and corporate parking lots. The station is OCPP-compliant and supports future V2G (Vehicle-to-Grid) technology according to the ISO 15118 standard.
Package Includes:
- Charging station
- Operating and installation manuals
- Grommet plate with cable connectors, plugs and screws
Specifications:
- Voltage: 230/400 V AC (1/3 phase, 50–60 Hz)
- Charging method: Mode 3
- Charging plug: 2x Type-2 plug
- Charging power: Up to 22 kW per plug
- Charging current: 6―32A (installer adjustable)
- Dimensions (mm): H405 x W367 x D159
- Charger weight: 10 kg
- Operating temperature: -30°C…+45°C
- Material: Recycled aluminum
- EAN: 7350084190313
- Warranty: 3 years
- Protection : Built-in RCD Type-B protection according to IEC 60947-2. AC: 30 mA, DC: 6 mA
Safety and Security:
- IP class: 55
- IK class: 10
- Fire rating: UL94 V0
