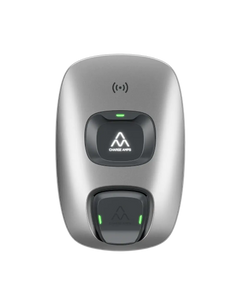

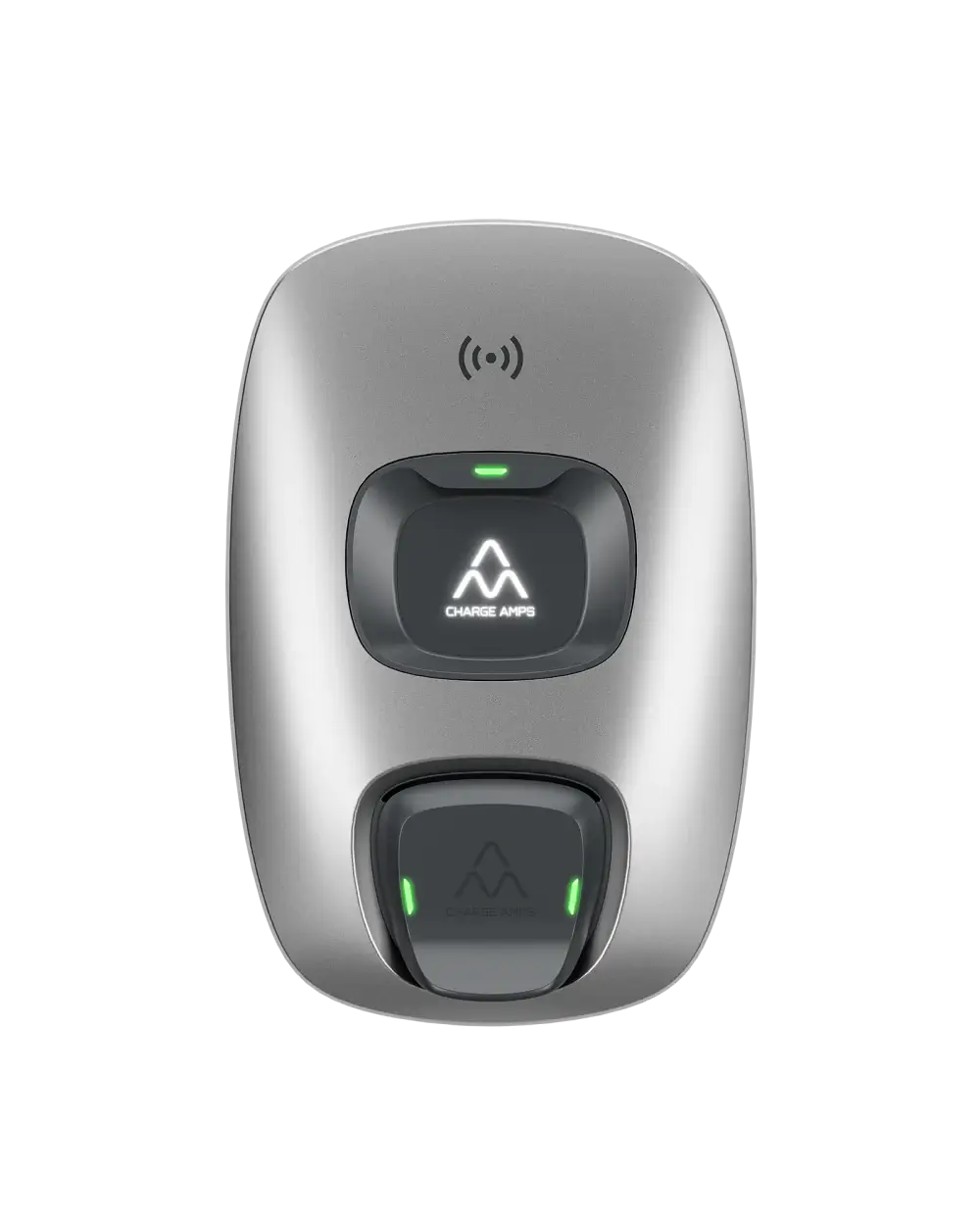

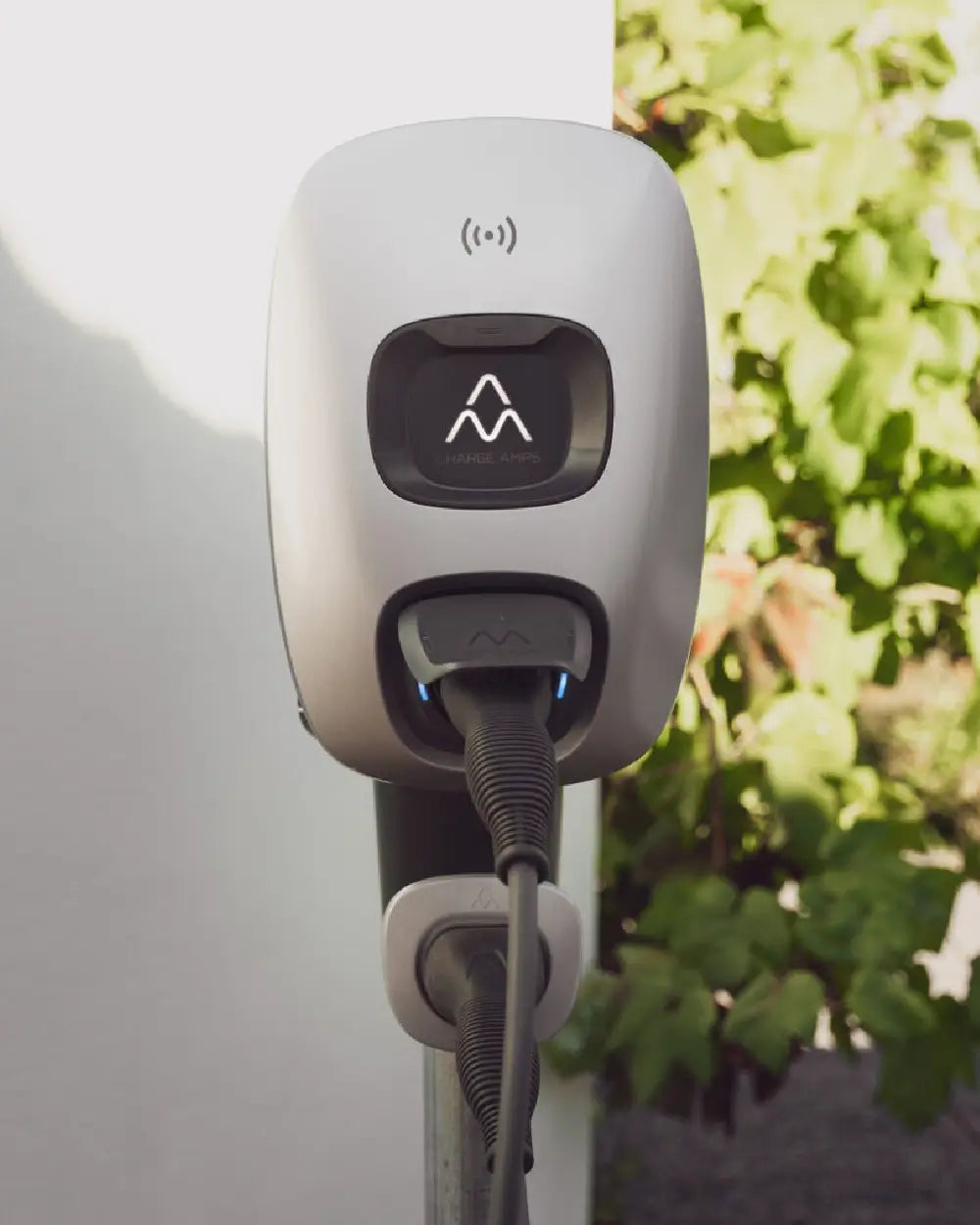

Charge Amps Dawn PRO charging station, 22kW, Type 2

Features:

• Power and connections:

  • Maximum power: 22 kW
  • Charging current: Adjustable 6–32 A / 1-3 phase
  • Voltage: 230/400V
  • Charging method: MODE 3
  • Charging socket: Type 2 socket

• Structure and durability:

  • Material: IP 54 (indoor module), IP 44 (outdoor housing)
  • Impact resistance class: IK 10
  • Dimensions: 250 mm (W) × 145 mm (D) × 378 mm (H)
  • Weight: 3.5 kg
  • Operating temperature: -35°C to +45°C

• Safety and measurement:

  • Built-in B-type residual current device
  • DC leakage current detection
  • MID-approved measurement

• Connections and control:

  • WiFi, 4G LTE (two years of free data), Bluetooth
  • Wireless control and monitoring with the Charge Amps app
  • RFID identification

Usage and Installation:

Charge Amps Dawn is designed as a user-friendly and intelligent charging station, especially suitable for semi-public areas such as apartment communities and office parking lots. The charging station allows for daisy-chaining of devices, making installation and maintenance cost-effective.

The charging station's beautiful design is the work of former Koenigsegg chief designer Joachim Nordwall. Dawn combines technology and user-friendliness, offering full control over charging via the Charge Amps Cloud and app.

Specifications:

• Model: Charge Amps Dawn
• Charging power: 22 kW
• Charging current: 6-32 A (adjustable), 1-3 phase
• Voltage: 230/400V
• Operating temperature: -35°C to +45°C
• Identification: RFID
• Charging method: MODE 3
• Connectivity: WiFi, 4G LTE (2 years of free data), Bluetooth
• Residual current protection: Built-in type B residual current protection and DC leakage current detection
• Measurement: MID approved
• IP class: IP 54 (indoor module), IP 44 (outdoor housing)
• IK class: IK 10
• Plug: Type 2 socket, 22 kW
• Dimensions: 250 mm (W) × 145 mm (D) × 378 mm (H)
• Weight: 3.5 kg
